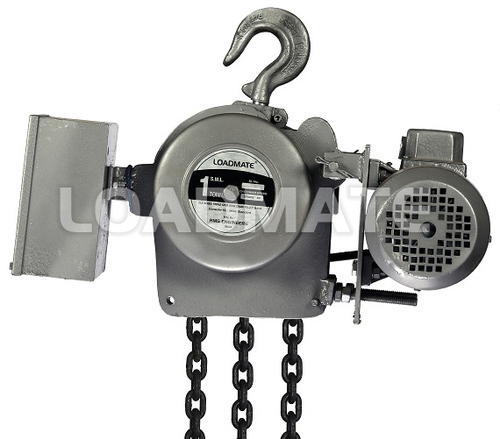

Motorized Chain Block

Motorized Chain Block
Motorized Chain Block
Product Code : MCB
Brand Name : LOADMATE
Product Description

For consistently meeting the needs of our valuable clients, we have become a reputed manufacturer and exporter by offering qualitative array of Motorized Chain Block. This block is manufactured under the observation of our experts who make use of quality approved materials. Used for lifting the materials, this is designed for providing continuous operations in case of power failure. We offer this Motorized Chain Block in numerous specifications at negotiable prices.

Features:

  • Easy to install
  • Superior strength
  • Robust construction

Specifications:

  • Available in 3 Phase & 1 Phase
  • Indigenously developed. Mechanical Parts manufactured as per IS: 3832
  • Driven on V-Belt (Ecodrive Fenner)
  • Tested at 25 % Overload
  • Hooks: As per IS: 15560 - 2005
  • Load Chain: 8 mm, Grade 80, Alloy Steel Material as per IS: 6216
  • Load Chain Wheel: S.G. Iron Casting Accurately pocketed
  • Gears: Alloy Steel Material, precise machined, gear hobbed & case hardened – duly annealed. Gears shall be lubricated with a semi-liquid grease instead of oil, which is less likely to leak, eliminates oil level checks and clings to the gears even after long idle periods.
  • Motor: Foot Mounted Motor operating on 415 Volts, 3 Phase/ 1 Phase, 50 Hz AC Supply
  • Braking Mechanism: Screw & Friction Disc Type  Self actuating
  • Control Panel Unit: Totally enclosed to protect from Weather, giving output at 24 Volts to the Operational Control Station (Push Button Station).
  • Operational Control Station: Suspended from Hoist with a Cable & supporting Wire rope with two push buttons extendable to four / six push button station. Operated with 24 Volts.
  • Guarantee: One Year from the date of sale on F.O.R. Surat basis, for free repair, replacements of any part proved defective in material or workmanship.
