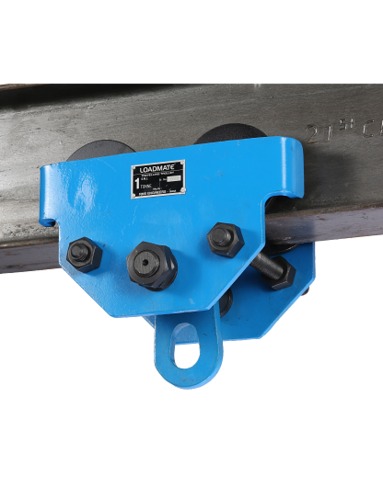

Push Pull Trolley

Push Pull Trolley
Push Pull Trolley
Product Code : 25
Brand Name : Loadmate
Product Description

Push Pull Trolley

Leveraging on our wide industry experience, we manufacture and supply an extensive range of Push Pull Trolley. It is used in various industries for loading and unloading of materials. Our experienced team uses supreme quality materials in the manufacturing of this trolley in accordance with set industry norms. This Push Pull Trolley can be availed from us in diverse specifications within promised time frame.

Features

  • Capacity range is 0.5T-20T
  • Lubricated wheels are provided with bearings for long use
  • Extra safety owing to more thick steel plates and durable shaft
  • Static test is 4 times of capacity
  • Running test is 1.5 times of capacity

Technical specification:

Rated load (T) 0.5 1 2 3 5
Test load (T) 0.75 1.5 3 4.5 7.5
Chain pull to lift load (N) 60 80 140 150 170
Dimensions (mm) A 248 280 318 340 365
B 196 236 273 320 366
C 190 211 236 295 334
H 108 115 130 164 177
I-Beam recommended 68-126 80-146 80-168 88-168 100-170
Net weight (kg) 9 14 16 24 36
Packing size (L''M''H'')(mm''mm''mm'') 26''21''15 28''25''17 32''28''19 34''33''22 38''37''27
